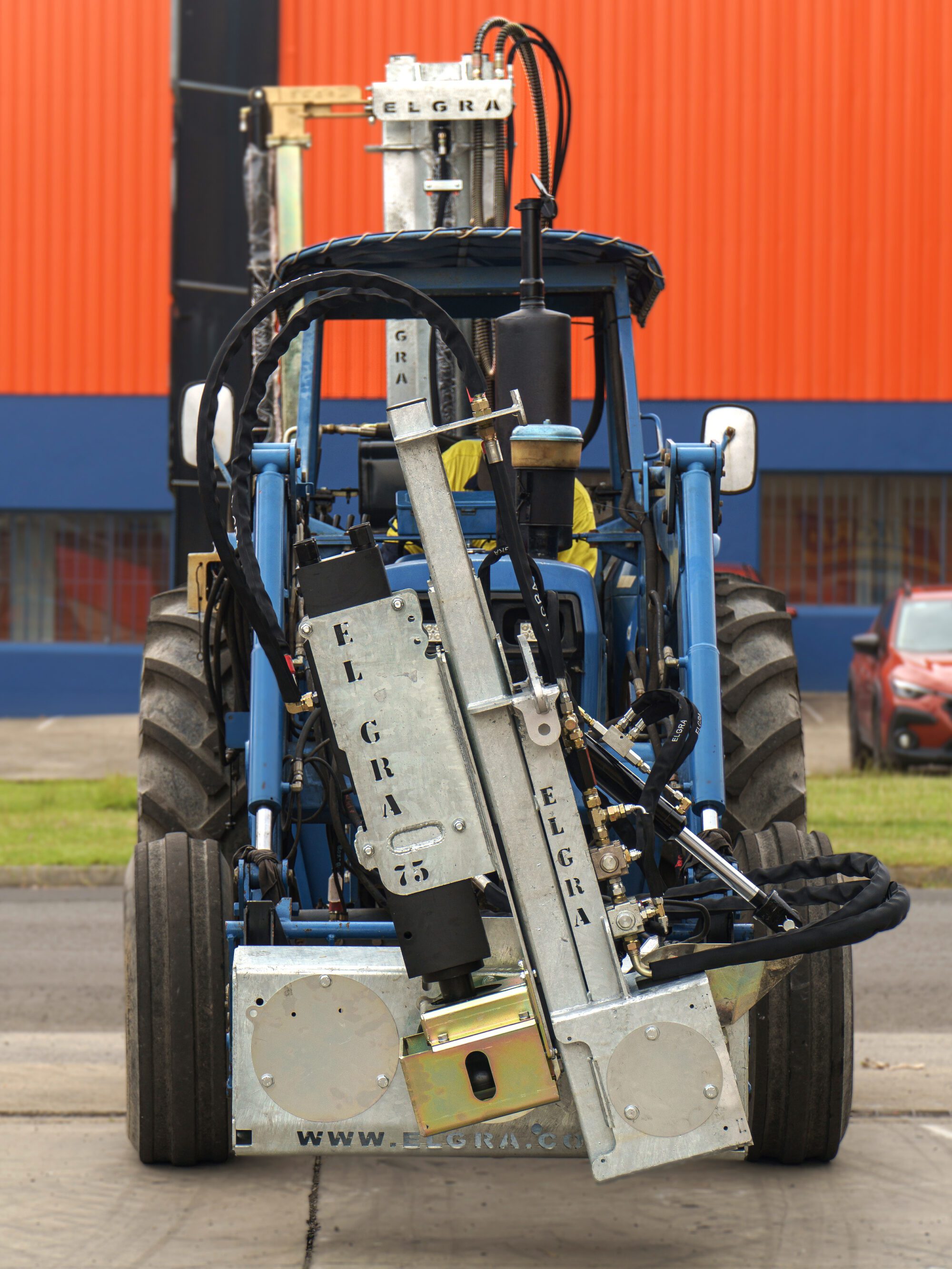

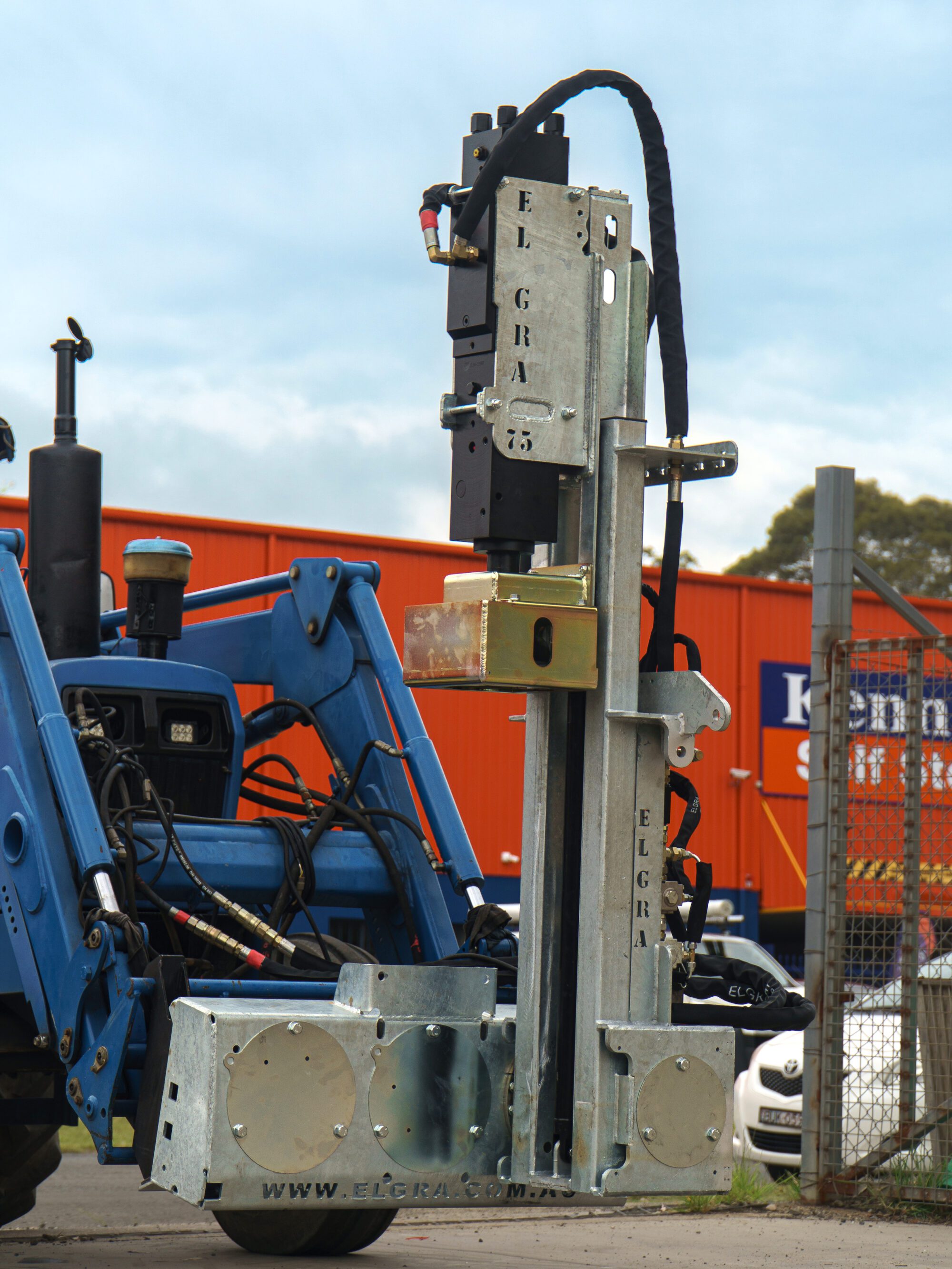

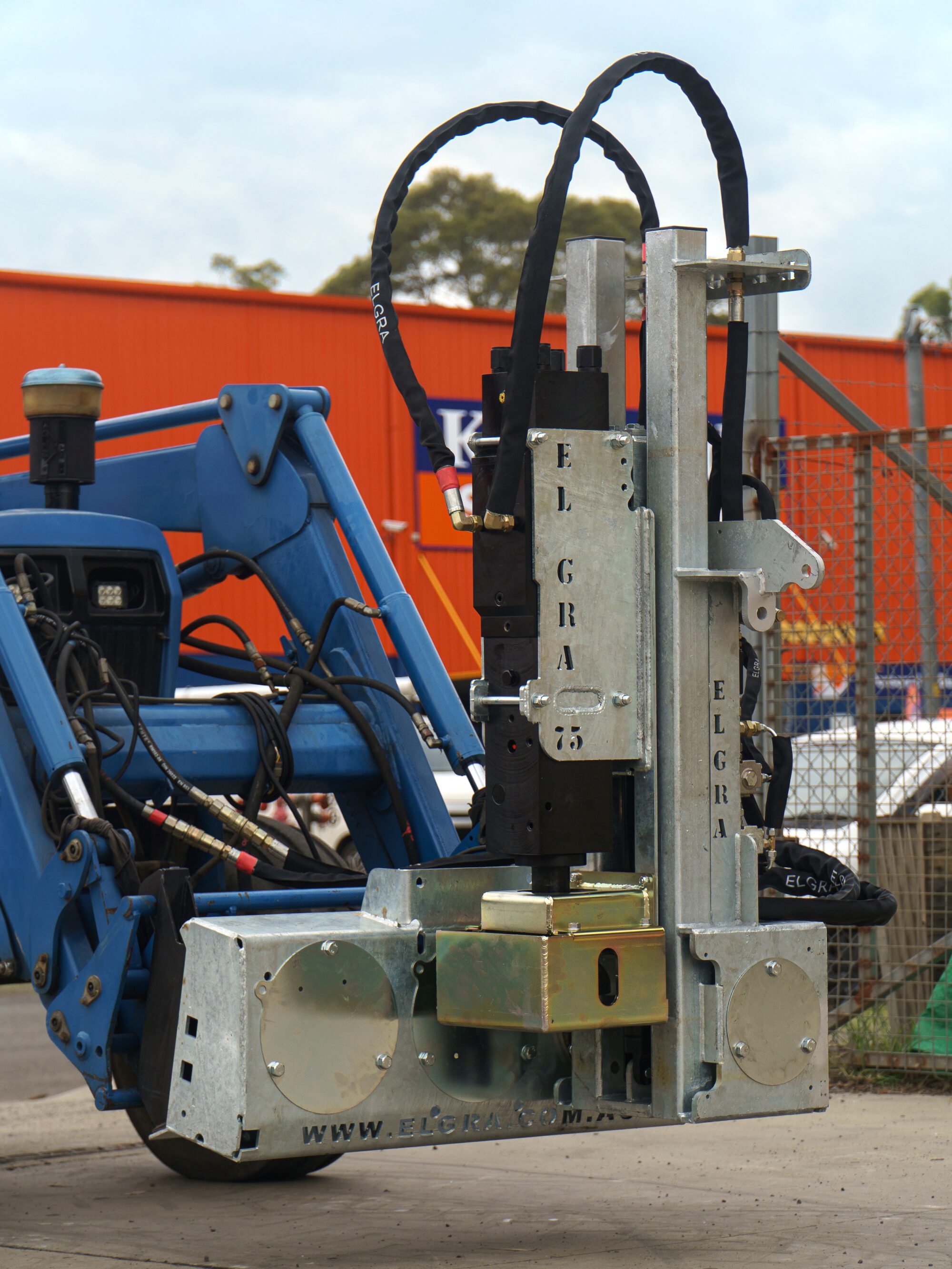

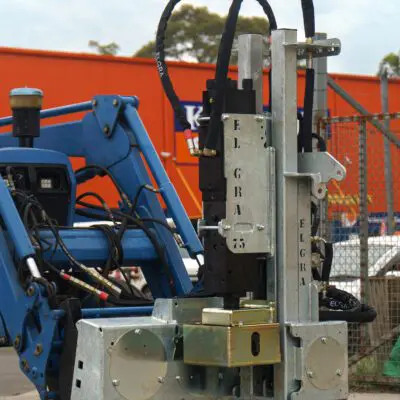

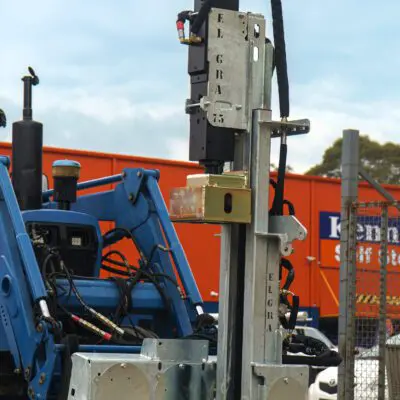

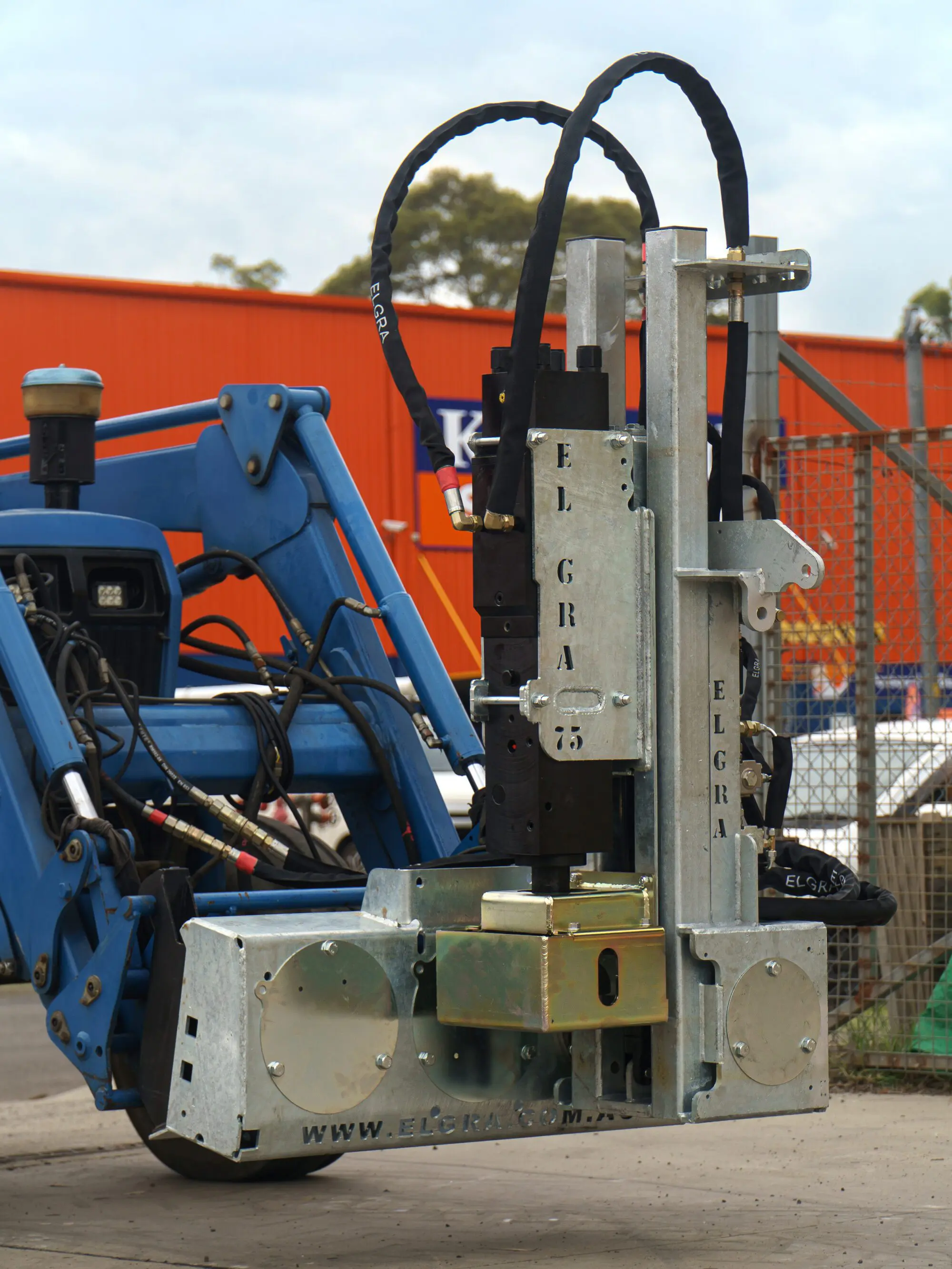

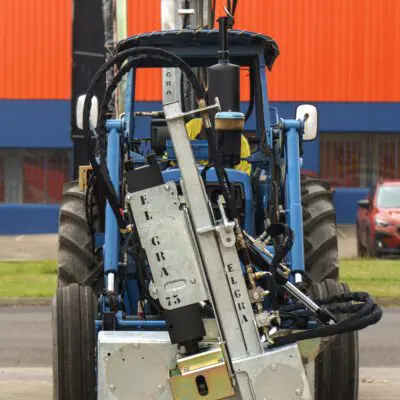

SERIES 90 POST DRIVER

Introducing the Series 90 Hydraulic Post Driver – Your ultimate solution for efficient and reliable post-driving. Designed by ELGRA, a leader in agricultural equipment, the Series 90 offers unmatched power and precision, making it perfect for a wide range of applications, from fencing to construction. Built from heavy-duty materials, this Post Driver is made to withstand the harshest environments, providing long lasting performance and low maintenance.

Make An Enquiry

Features

Removing the need to stand on the ground to operate the driver, the Series 90 opens up a whole new range of options for fencing contractors and other engineering applications .

Series 90 the driver offers greater comfort, ease of use and safety to the operator.

The main Power Head ram has an adjustable valve, this allows you to set different pressures on the head. With the Power Head Series, once you activate the lever you get continuous hits from 450-950bpm. The Power Head Series also comes with hands free hydraulic swing auger into the drill position, it also has hydraulic down force for those tough jobs.

Make An Enquiry

3 point linkage, Excavator or Skid Steer mounts available
Adjustable Down Force on Power Head
Continuous Hitting Power from Start to Finish
Custom size post guides available
Hydraulic Tilt Features:
Sideway Tilt: East/West = 13 degrees
For/Aft Tilt: North/South = 12 degrees

Options

Option 1

Impact Energy: 900 Joules (approx.)
Oil Flow 25-45 lpm
450 – 750 bpm

Option 2

Impact Energy: 1200 Joules (approx.)
Oil Flow 25-45 lpm
450 – 750 bpm

Option 3

Impact Energy: 122200 Joules (approx.)
Oil Flow 25-45 lpm
450 – 750 bpm

Option 4

OPTION 4 200 Cell

Impact Energy: 2,500 Joules (approx.)
Oil Flow 80-100 lpm
450 – 700 bpm

Make An Enquiry

Fully Australian-made

Contact us now to get a FREE quote

ELGRA manufacture and sell predominately three point linkage mounted machines, but as the years have gone by there has become a demand for our equipment to be mounted to skid steers and tele-handlers.
