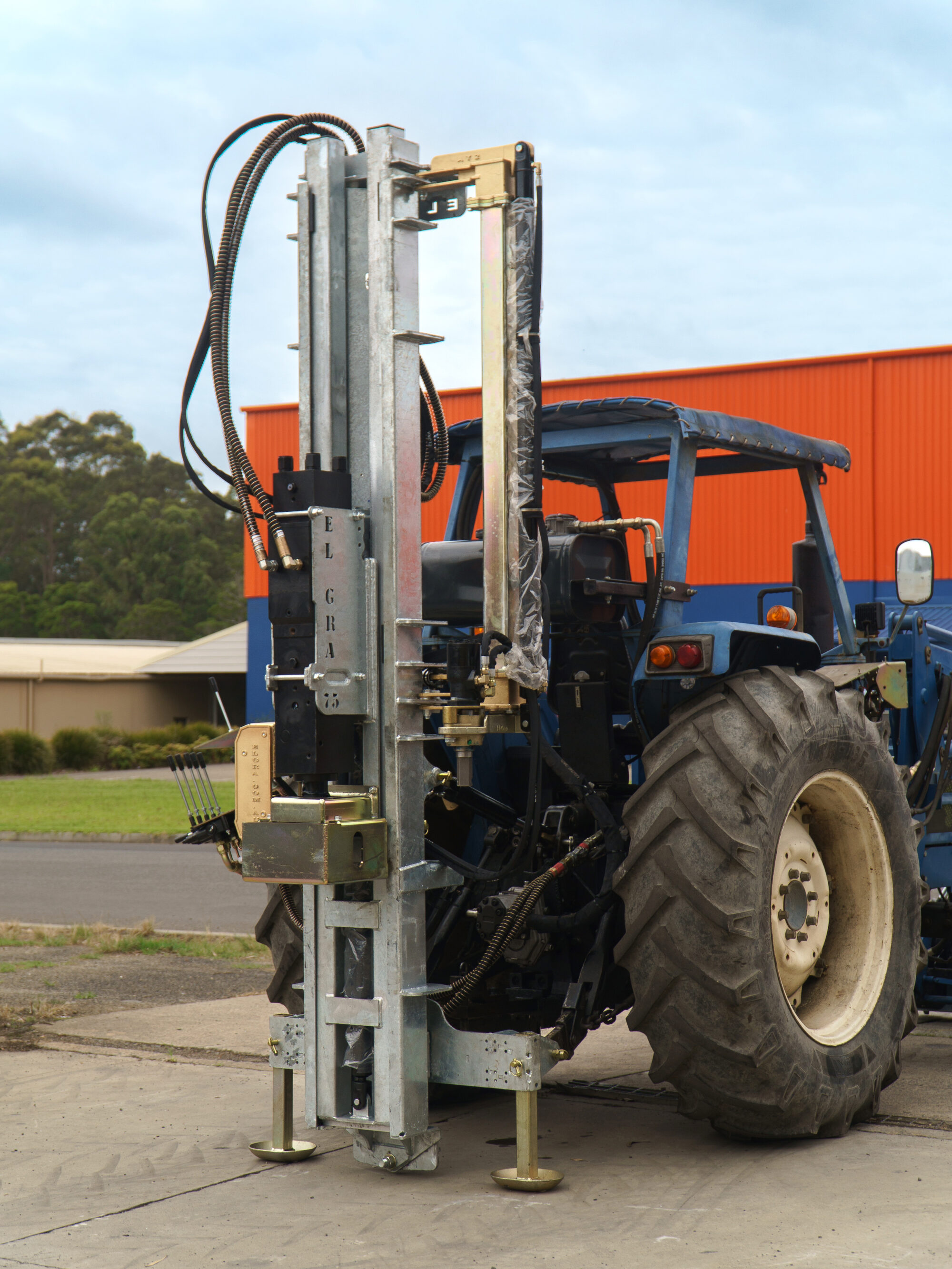

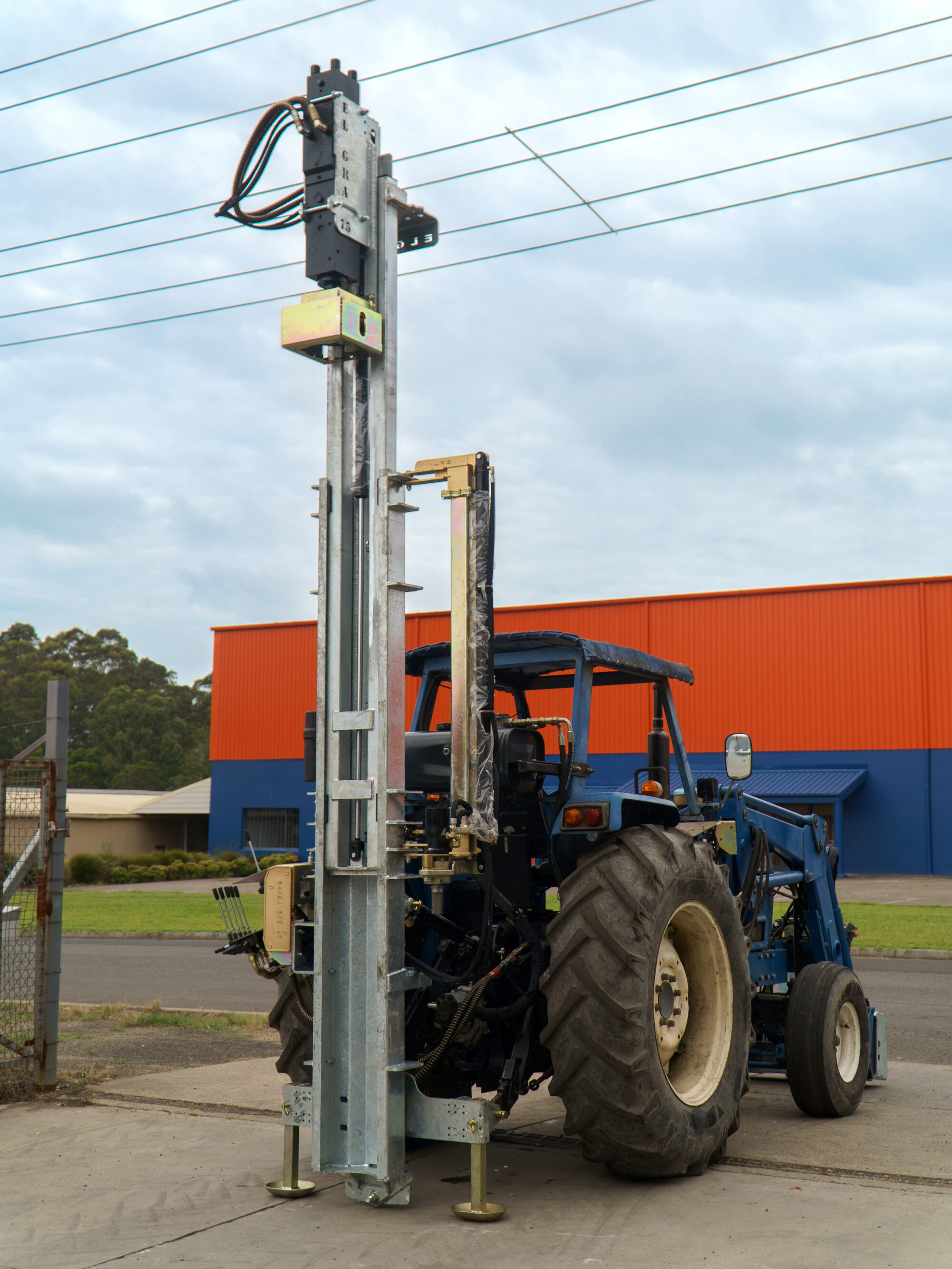

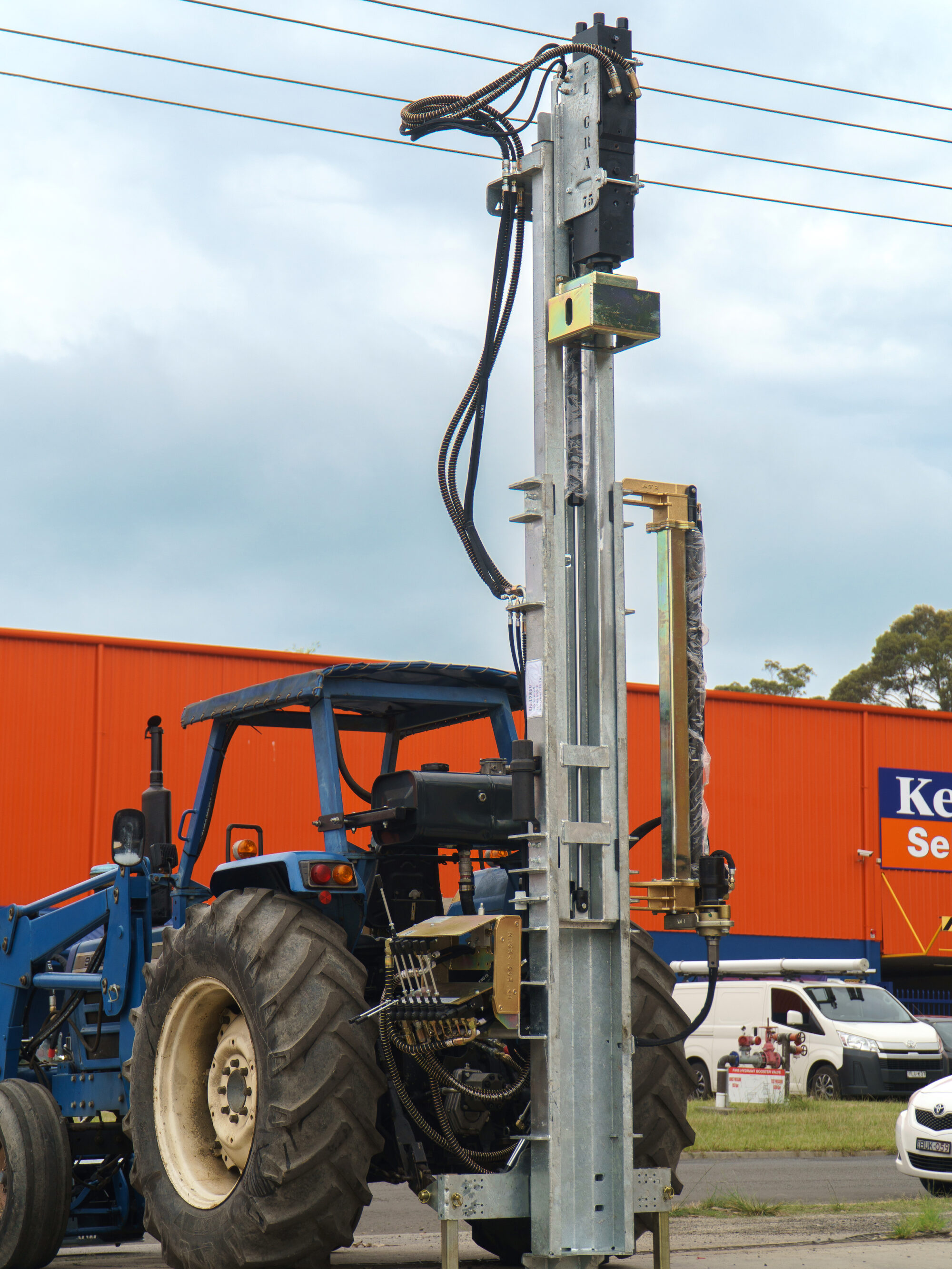

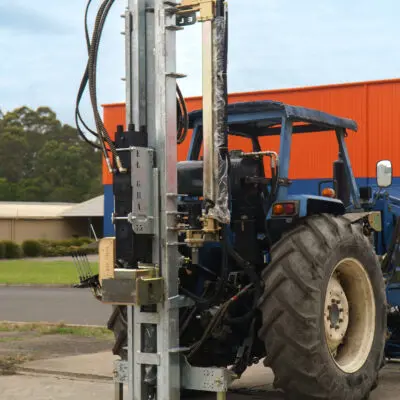

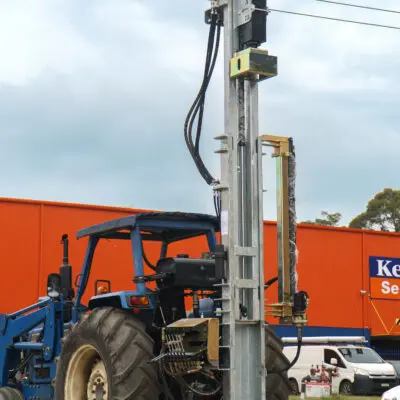

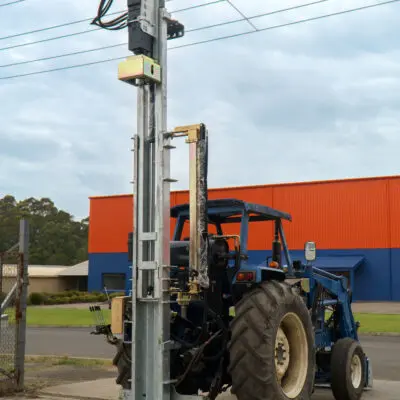

High Lift Post Driver -Series 89

The Ultimate Post Driver For Tall Posts!

The 89 Series Hi-Lift is 3.6 meters under the Tamper pad, provides an easy solution for those difficult post driving applications where tall posts are required. Delivering a high degree of operator safety, and ease of use, the Elgra 89 Series Hi-Lift is the obvious choice for rural and commercial operations. With its High Lift design this High Lift Post Driver allows you to reach greater heights and handle larger posts with ease. The Hydraulic Percussion system delivers immense driving power, reducing the time and effort needed to secure posts in all types of soil – whether it is clay , rock or gravel. Engineered for easy operation, the hydraulic controls offer precise maneuverability and smooth performance allowing even less experienced operators to handle the machine with confidence. Built with High quality materials this High Lift Post Driver is designed to withstand tough work environments and heavy use over time. The High Lift is available in 4 Power Cell options.

Make An Enquiry





Features

  • 3 point linkage, Excavator or Skid Steer mounts available
  • 3.6 meters under the Tamper pad
  • Adjustable Down Force on Power Head
  • Continuous Hitting Power from Start to Finish
  • Custom size post guides available
  • Hydraulic Tilt Features:
  • Sideway Tilt: East/West = 18 degrees
  • For/Aft Tilt: North/South = 12 degrees
  • Hydraulic Swing on Auger into Drill Position

Work Cover Compliant!

Post Driver, S89 Post Driver by El-Gra Engineering, Nowra, NSW as stated in the WorkCover and WorkSafe 2009 Legislation – All post drivers with a free falling hammer MUST be fitted with a safety screen/guards, the hammer must be fully enclosed 300mm below the lowest point of the hammer stop and 2.4m to the top of the screen from the ground. If the guard is opened the drop speed of the hammer must be restricted to a maximum 100mm/second. If the guard is removed the hammer must remain inoperable.

Being that it’s all hydraulically driven (cell included), it gives you the operator, a combination of power, maneuverability and versatility. It will save you time, and that will save you money.

And it delivers – with Four Power Head Options:

Options

Option 1: 50 Cell

  • Impact Energy: 900 Joules (approx.)
  • Oil Flow 25-45 lpm
  • 450 – 750 bpm

Option 2: 75 Cell

  • Impact Energy: 1,500 Joules (approx.)
  • Oil Flow 40-80 lpm
  • 400 – 800 bpm

Option 3: 100 Cell

  • Impact Energy: 2,000 Joules (approx.)
  • Oil Flow 45-80 lpm
  • 400 – 800 bpm

Option 4: 200 Cell

  • Impact Energy: 2,500 Joules (approx.)
  • Oil Flow 80-100 lpm
  • 450 – 700 bpm
Fully Australian-made

Contact us now to get a FREE quote

ELGRA manufacture and sell predominately three point linkage mounted machines, but as the years have gone by there has become a demand for our equipment to be mounted to skid steers and tele-handlers.
